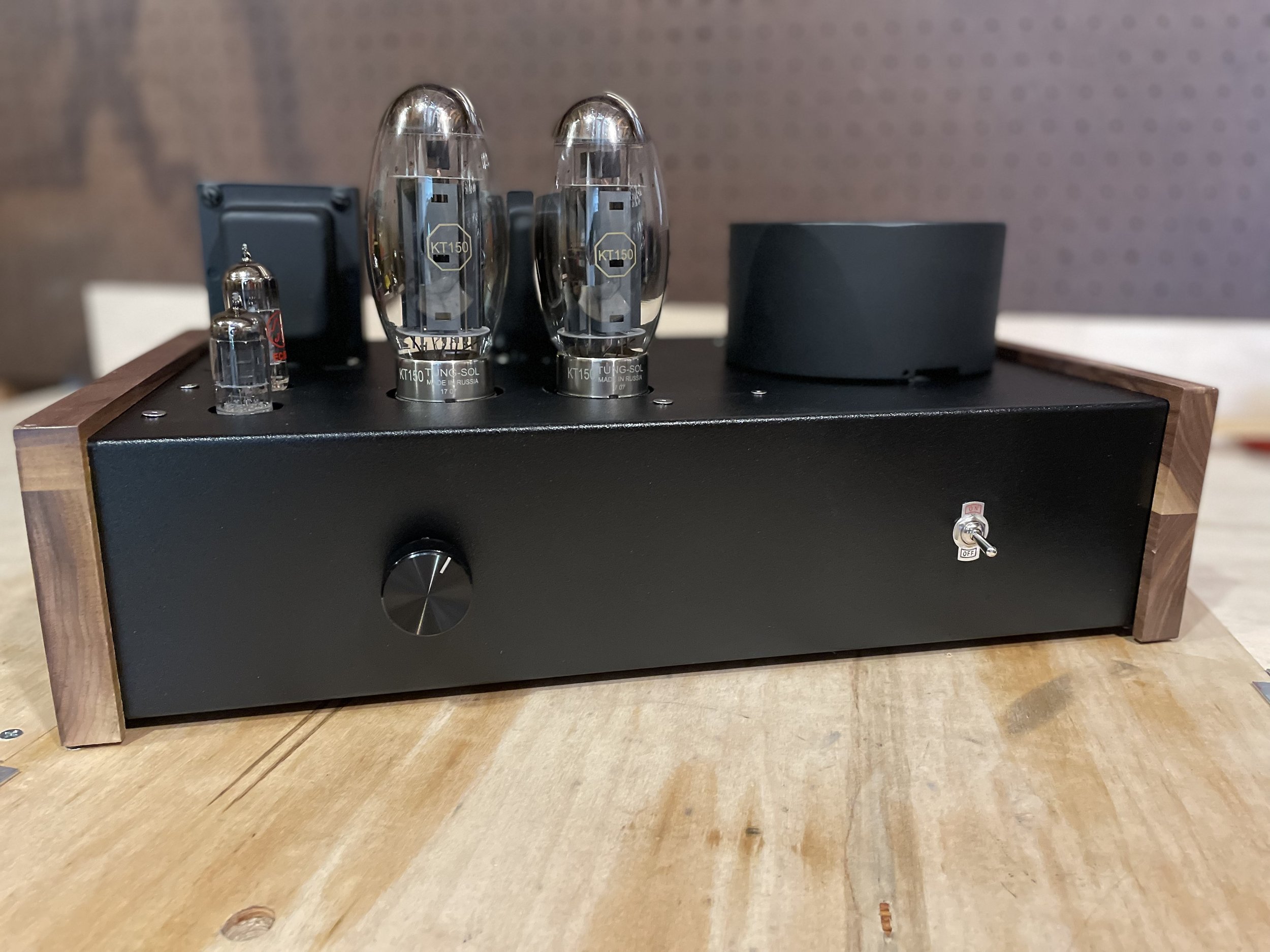

The Certified Felon Amplifier
“endorsed authoritatively as having met certain requirements of [Archaic] a wicked person”
Looking for a compact solution without compromising power and sound quality? This standalone unit houses all the top-tier modules we retrofit into consoles and is capable of driving even the most demanding speaker loads, making them come alive with clarity.
No pre-amp required for use
No external DAC needed to play high resolution files

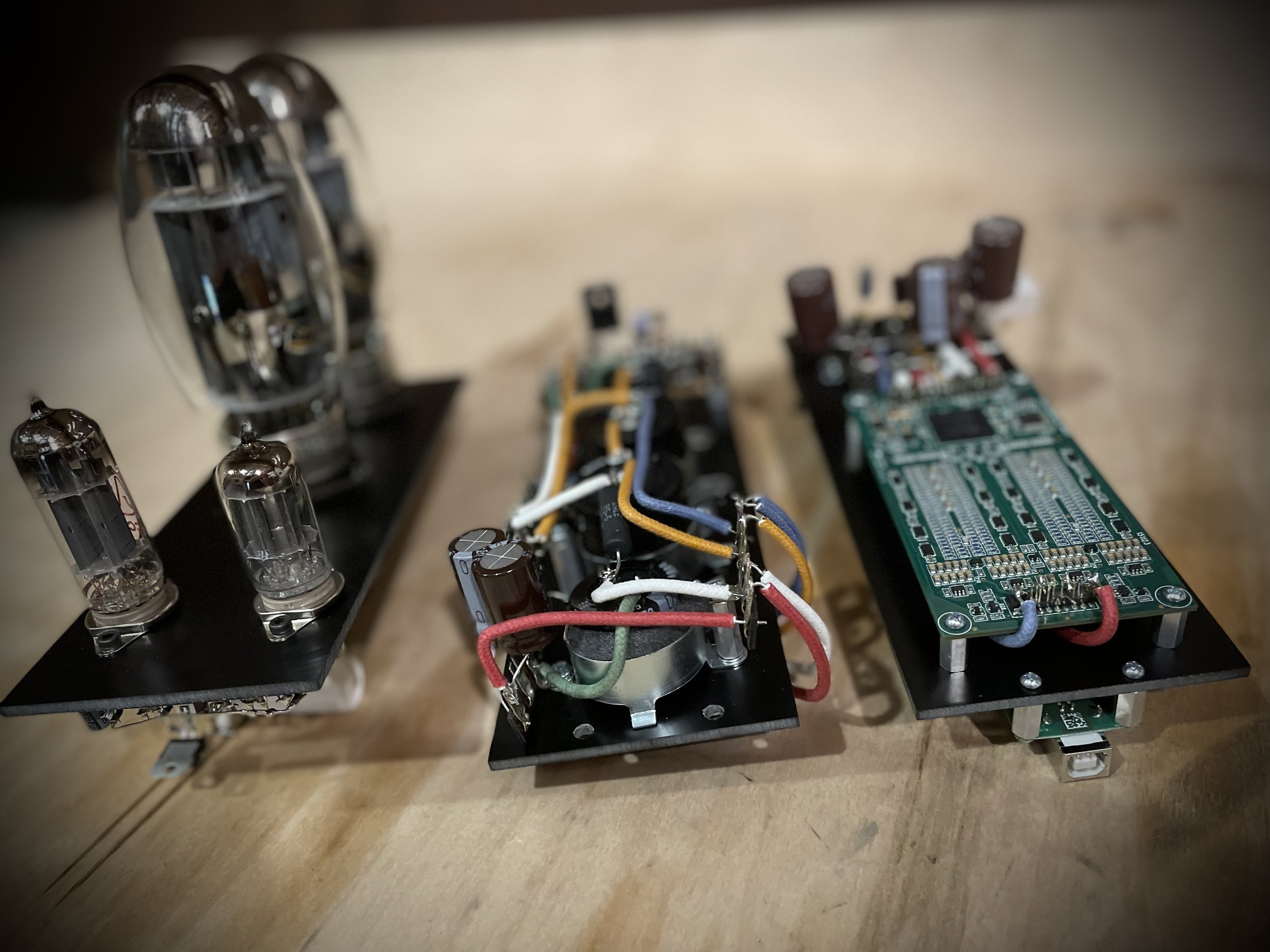

Modular construction can be used in consoles or fit into a stand alone chassis
Amplification
Power Supply
Digital to Analog conversion
The system that craves to stay on all day, you don’t mind the nonstop music, and when you stop to listen, you say “wow”
This unit has broken all the traditional rules of a tube amplifier: RCA and USB stepped attenuated inputs, floating power supply, discrete resistor to resistor ladder for the digital to analog conversion, zero global feedback, and a cathode follower output stage
“I want to simplify high fidelity for music lovers, pieces are constructed with old school techniques using modern twists”
— R. Carson Vizina, Founder
Geek Speak
DAC
THD @ -1db 0.008%THD @ -60dB 0.05%
Clock Jitter RMS 0.8 pS typical
Resistors Precision 28 bit 0.02% resistors
S/N Ratio 20 Khz Bandwith 129 dB unweighted
Frequency Range +0.1dB -1.0dB 20hz - 20Khz
Input USB to I2S PCM Up to 24 bit / 384 Khz
Input USB to I2S DSD Up to DoP128 and DSD256
Digital volume control-80 dB to +10 dB
AMP
Tube Compliment:
Output: 2x KT170 and the 6550 family of power tubes
Pre-Amp 1x ECC83
Driver 1x ECC99
Output impedance 4, 8, or 16 ohm
Frequency and phase response
